How to set the BookDrive Capture dual mode with VMware

March 30, 2009 on 5:37 pm | In General | No Comments

PC Specification :

  • OS  :  Vista ,  XP SP2
  • Memory  :  2 GB or more
  • Hard Disk  :  50GB or more


Master :

Install the BookDrive Capture(master PC).

Slave :

  1. Installed VMware and install Vista or XP (recommend) into VM.

    VMware configuration:

    Memory     :  256MB(XP) , 1GB(Vista)
    Hard Disk   :  10GB or more

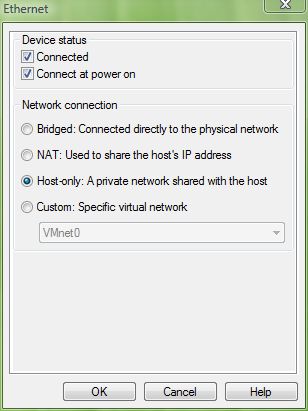

    Ethernet     :  Host-only(without cable) , Bridged(LAN)


  2. Install a Capture Slave to VM’s OS.
  3. Check the VM’s OS IP address at the Capture Slave or below.
    -   Window + R ->cmd->ipconfig and remember the IP address.
  4. Enter the IP address into BookDrive Capture -> Slave Connection.

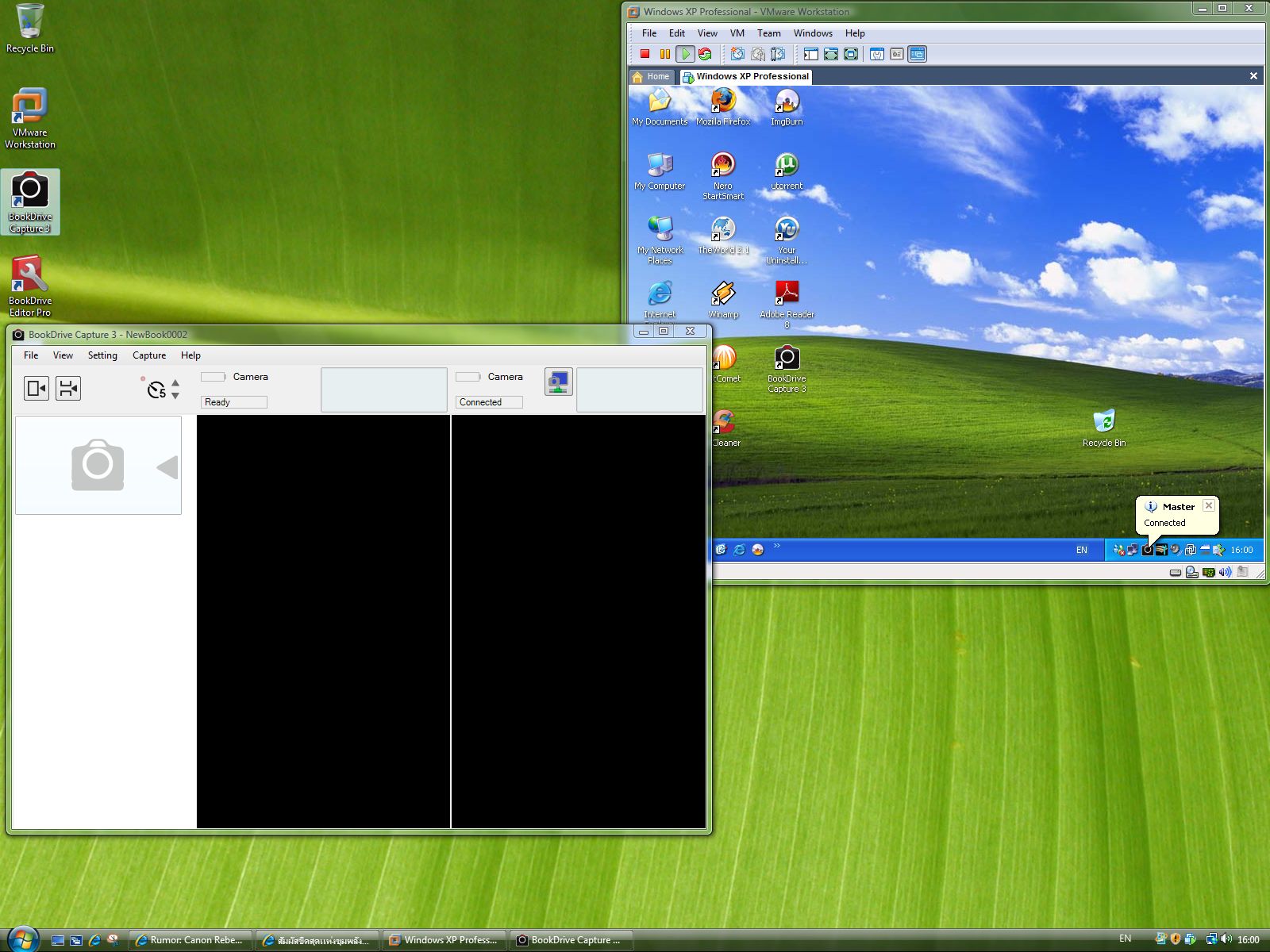

How to connect both cameras

Connected are both cameras to PC with USB.(Cameras turn OFF).

Master :

Handle the BookDrive Capture and turn ON right camera. Please wait done.

Slave :

Handle the VM and turn On left camera. Please wait done.



Download PDF File
